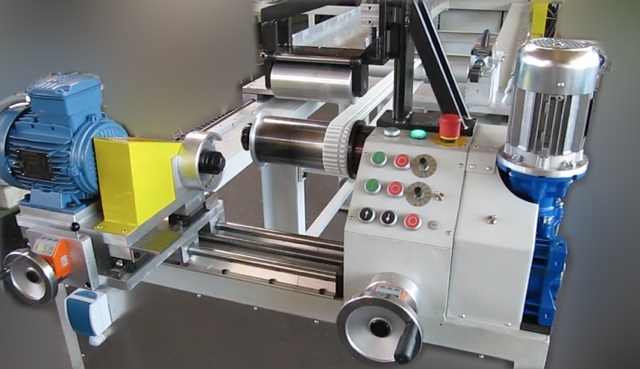

Multifunctional
Machine MF-10

Engineered for grinding, milling and coating of timing- and flat belt sleeves

Grinding

With speed control and digital measuring of grinding depth. Grinding roller will be a steel shaft set with grinding material. Optionally, this grinding roller can be cooled internally by water

Miling

Milling tool will be a disc, it can be changed in different widths. Position of milling tool can be adjusted by hand wheel and digital display. Rpm of milling tool will be adjustable.

Coating

Coating of belts by fan heater with adjustable temperature and flow volume. Pressure roller for coating material with adjustable pressure. Rpm of belt drive will be adjustable. Operator must use the right profile of drive pulley.



Technical Details

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nulla euismod condimentum felis vitae efficitur. Sed vel dictum quam, at blandit leo.

Dimensions

Length: approx. 6.000 mm

Width: approx. 1.500 mm

Weight: approx. 1.050 kg

Maximum belt size

Max. belt length grinding and coating approx. 8.800 mm

Max. belt width grinding 300 mm

Max. belt width coating 150 mm.

Requirements

Electric supply: 400 Volt, 3 Phases, 50 Hz, 16 Ampere

Pneumatic supply: 6 bar

Roller size

100mm diameter of grinding roller

130mm diameter of coating roller
