Beyer GmbH is a leading manufacturer for high quality cutting machines that significantly increase efficency and precision of cutting operations. All models can be enhanced and modified to fit specific customer requirements

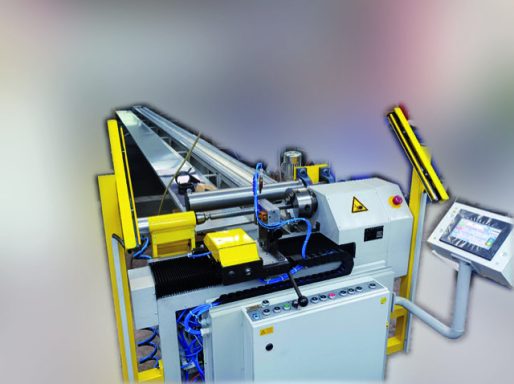

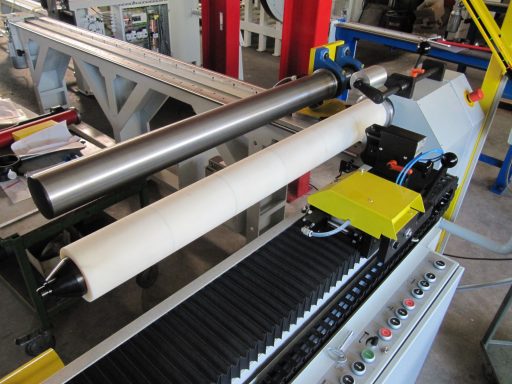

WSM 100
- Basic model for manual cutting process -
Key features
- Automatic tensioning of sleeve by electric driven tensioning shaft
- Tension force adjustable in 4 levels up to 1 500 N
- Manuel activation of the tailstock of the cutting shaft
- Stepless adjustable rpm of the cutting shaft up to 500 rpm
- Manuel lateral positioning/motion of the cutting knife by hand wheel
- Lateral movement of cutting knife via a trapezoid spindle
- Manuel cutting motion (knife forward/backwards) by a hand lever
- Digital display of the current position of the knife
- Relay control of cutting machine
- Electric supply: 400 Volt, 16 Ampere, 3 Phases

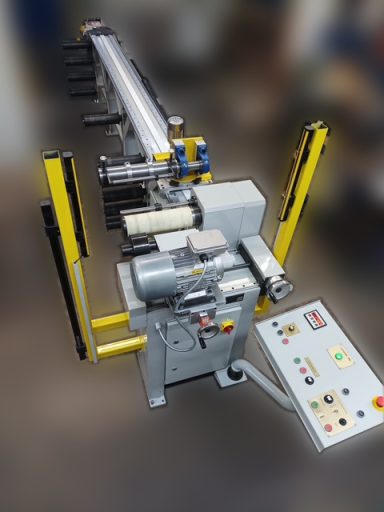

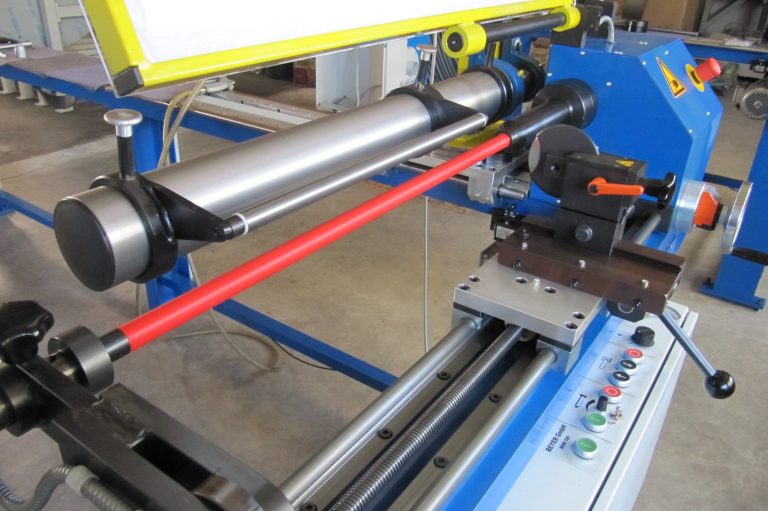

WSM 101
- Advanced model for semi-automatic cutting process -
Additional features (to WSM 100)
- Automatic activation of the tailstock of the cutting shaft
- Automatic lateral positioning/motion of the cutting knife by push button
- Controlled by a PLC
- Automatic counting and display of the number of cuts
- Special software for cutting Micro-V / Poly-V belts
- Pneumatic supply: Air pressure 6 bar

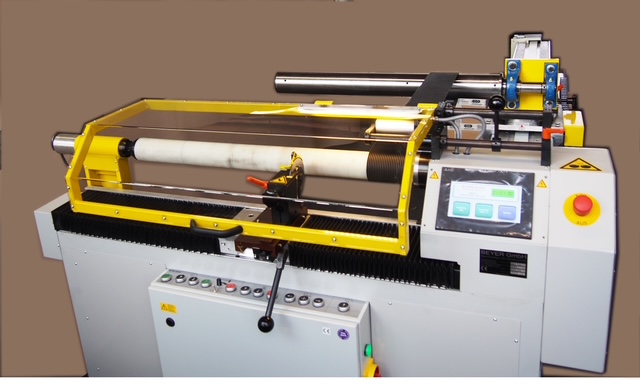

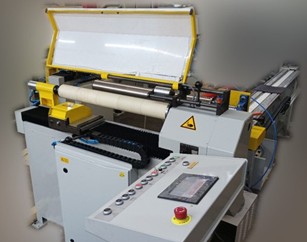

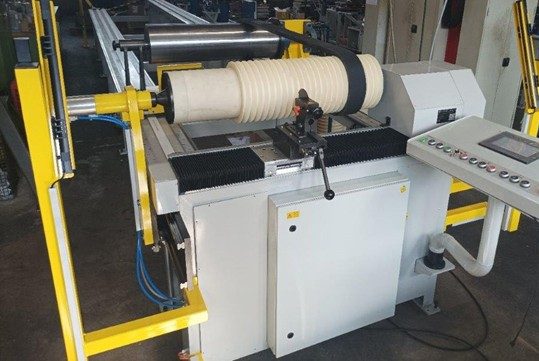

WSM 102
- Premium model for fully automated cutting -
Additional features (to WSM 101)
- Automatic cutting motion (knife control forward/backwards) by a pneumatic cylinder
- Lateral movement of cutting knife via a protected ball screw spindle
- Possibility of operating as semi-automatic cutting machine
Modifications (Examples)
Below is an excerpt of the most common modifications, which are frequently ordered to meet specific requirements in the cutting process:

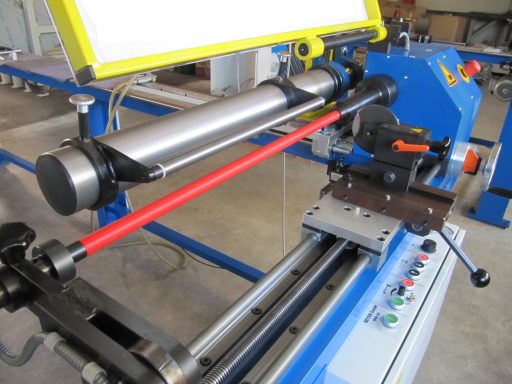

Increased tension
Double linear guide, increased motor performance and enhanced steel frame for wider and stronger belts
Small belt cutting equipment
Additional cutting rollers to process short belts .

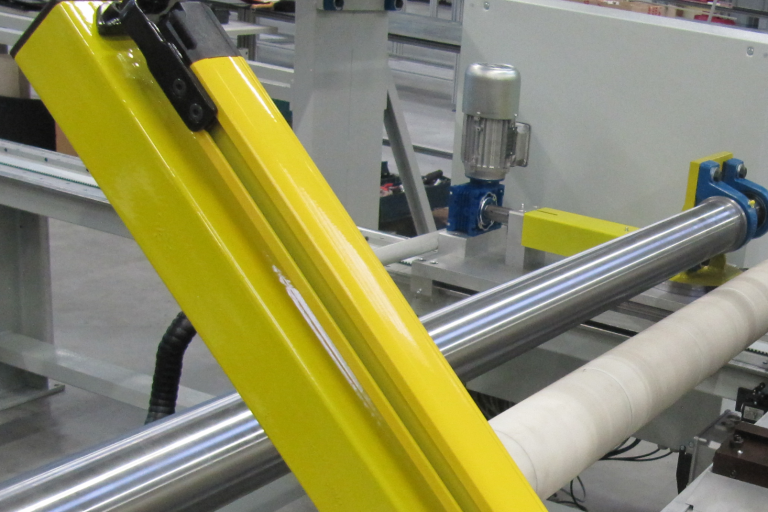

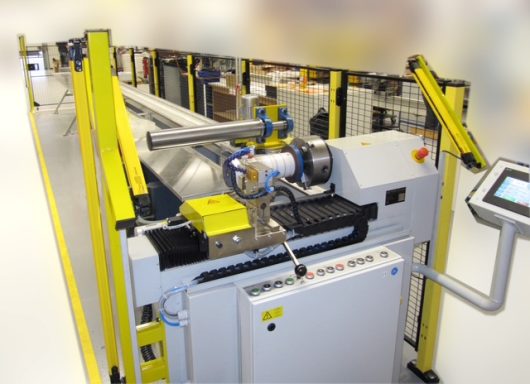

Laser curtains
Advanced safety equipment for easier operations without visual impairments

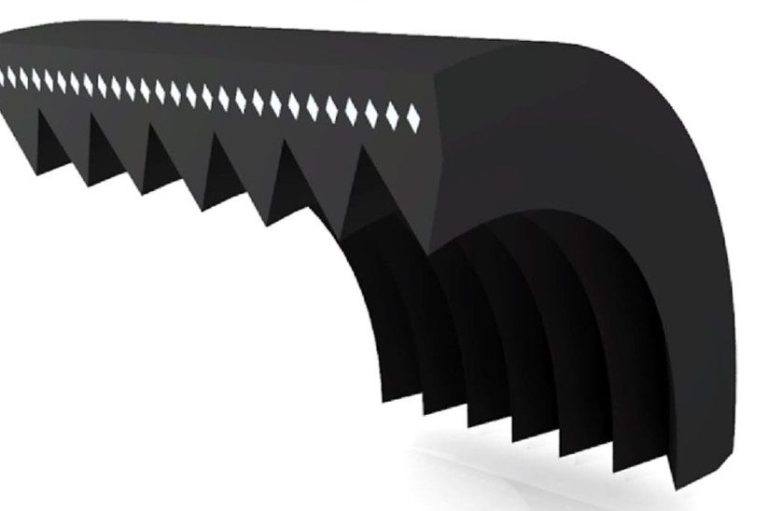

Poly V equipment
Special tool holder to cut Poly-V belt sleeves, with H, J, K or L profiles

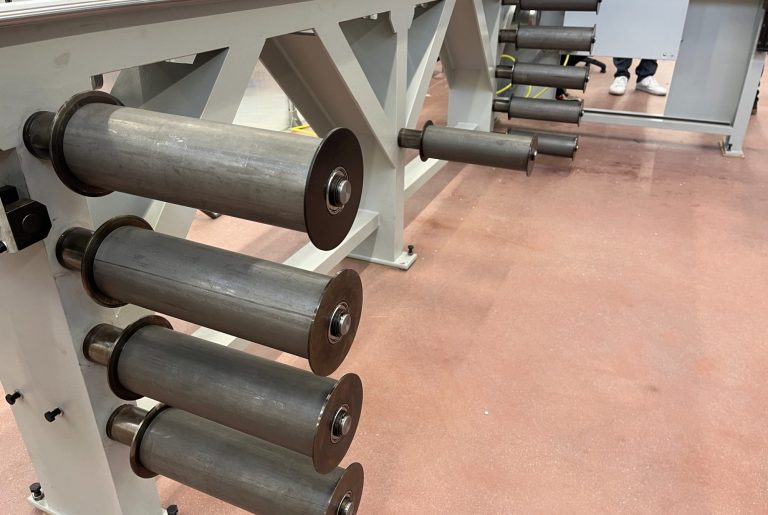

Length expansion
Additional deflections rollers can increase max belt lenth up to 30m

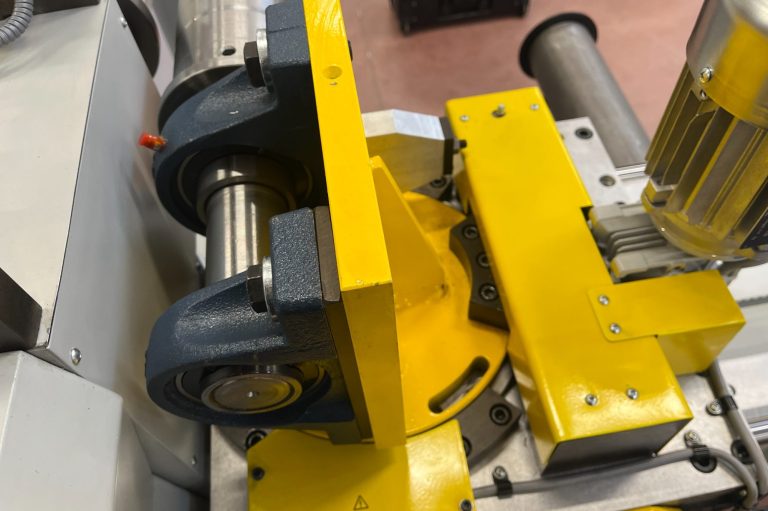

Electronic Angle adjustment
Automate tension roller adjustment to easer change and control belt circulation.
Technical Details
All products offered by Beyer GmbH can be modified according to customer requirements. Feel free to reach out to us, we are happy to provide you with custom-made solutions that adress your specific needs
Specifications
Dimension of cutting machine: approx. 1.7m x 3.7m, depending on machine type and modification
Maximum belt length = 5 800 mm
Minimum belt length (without equipment to cut small belts) = 600 mm
Minimum belt length (with equipment to cut small belts) = 130 mm
Maximum belt width = 750 mm
Diameter of the cutting = shaft 75 mm
Rpm of the cutting shaft 70 rpm to 500 rpm
Diameter of the tensioning shaft = 100 mm
Max. belt tensioning approx. 300 N to 1 500 N
Available equipment
Equipment to cut small belts
Angle adjustment of tension roller by drive motor
Expanding the max. belt length to 7 800 mm (belt width 750 mm)
Expanding the max. belt length to 25 m (belt width 300 mm)
Aditional cutting shaft 40mm to 100mm
Cutting shaft cover 20mm to 70mm
Cutting disc 1.6mm to 3.2mm
Cutting tools for Poly-V belts (H,J, K or L profile)
Delivery and Installation
Beyer can arrange transport and deploy own personell to ensure on-site installation of all maschinery
Delivery times are subject to customer requirements and production capacity
.
Safety
Emergency switch controlled via two-circuit safety relays
All control functions supplied by safety low voltage (24 Volt DC)
Protection of the cutting shaft
Drive motors with brakes for stopping immediately during emergency stop
Electronic shut down if open tailstock of the cutting shaft
Please note that the Customer remains responsible to ensure compliance with local safety requirements
