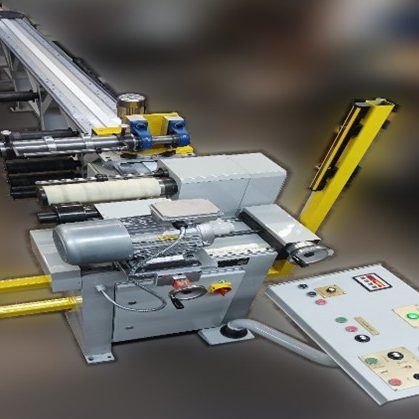

Grinding Machine GM
We offer versatile grinding machines that can process various belt types with different grinding tools.
Other fuctions, such as coating and milling, can also be added to this model.
Purpose
Engineered for grinding timing- and flat belt sleeves
Key Functions
Automatic sleeve tensioning
Tension force adjustable in 4 levels up to 1 500 N
Continous adjustable belt turning speed
Adjustable positioning of grinding drum or wheel
Automatic changing of belt turning direction
Grinding Tools

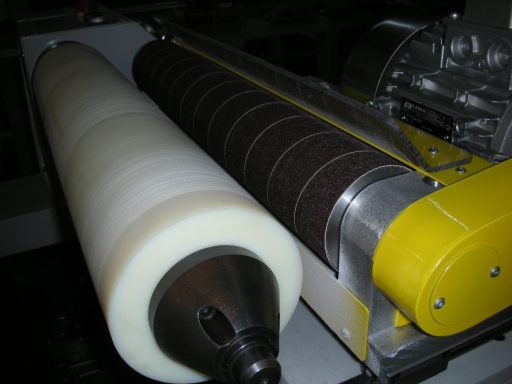

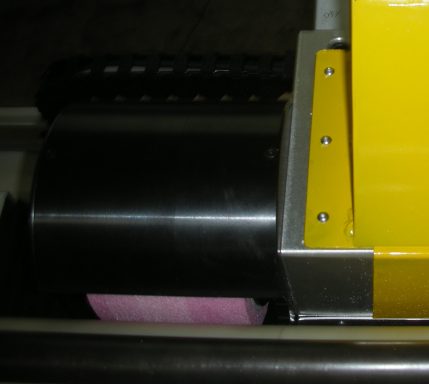

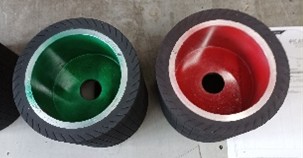

Wheel Roller Drum
Select the grinding tool according to the intended use
Demonstration
Technical details
Drive motor of grinding roller 2.2 kW
Belt tensioning approx. 300 N to 1 500 N
Dimensions
Length: approx. 3.800 mm
Width: approx. 1.500 mm
Weight: approx. 1.050 kg
Maximum belt size
Max. belt length up to 25 meter (with modifications)
Max. belt width up to 600mm
Requirements
Electric supply: 400 Volt, 3 Phases, 50 Hz, 16 Ampere
Pneumatic supply: 6 bar
Grinding tool
Wheel, drum or roller
standard diameter 200mm
