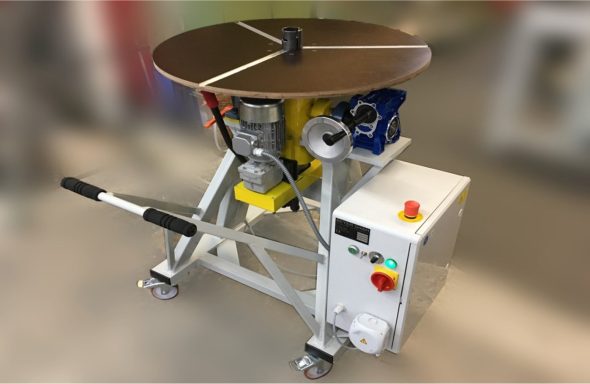

WB 800 Winding Station
Effective winding of open-end processing belts, power transmission belts, timing belts and other types.
General description:
- Welded steel construction, movable on 4 wheels
- ø 800 mm Diameter of winding table (can be modified)
- Rotation of winding table is driven by gear motor
- Footswitch for switching ON /OFF of rotation
- Adjustable rotation speed by potentiometer (30 rpm - 180 rpm)
- Mandrel is retractable by hand leaver, to get a flat table
- Angle adjustment of winding table stepless, horizontal to vertical by handwheel,
- Winding table is lockable under every angle
- Dimension in total: 1.2 x 0.9 x 1.3 meters
- Weight: 180 kg
WB 1000
- Diameter of rotating table 1000 mm

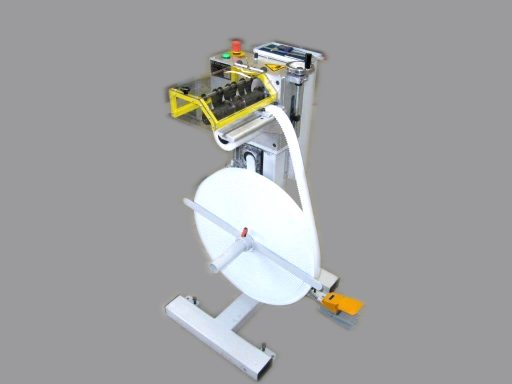

WB 800 LM Winding&Measuring
Winding station with connected measuring device.
- Device can easily measure & wind belts by the meter
- Equipped with simpler version of LMC measuring device
- Measuring will not be sufficiently precice to always determine exact mm values
WB 1000-LM
- Diameter of rotating table 1000 mm
WBX
Expanding winding station
- Winding roller/shaft can pneumatically expand
- Dimensions according to customer requirements
AB 800
Unwinding station
- Inexpensive standard device to store belts
- Without motor support
LMC & WB Combination
Designed for unwinding, length measuring and winding of timing belts, flat belts, etc. in just one machine
Components:
- Unwinding device type AB 1000
- Length measurement device type LMC-150 with frame
- Reeling/Winding device type WB-1000
