Punching machine
The machine is designed for creating “finger shape - punching" on timing belts. All common timing belt profile types can be processed. The machine is also equipped with an electronic system for length measurement
Features

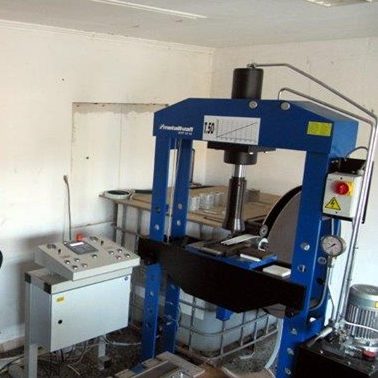

The hydraulic press (50 t) is a standard press with a connected rewinding device, measuring device and cutting die. In order to punch different shape types, only the cutting die unit must be changed.
The digital display shows the belt length at the control panel. The operator must set the corresponding profile to determine the exact length in millimeters.

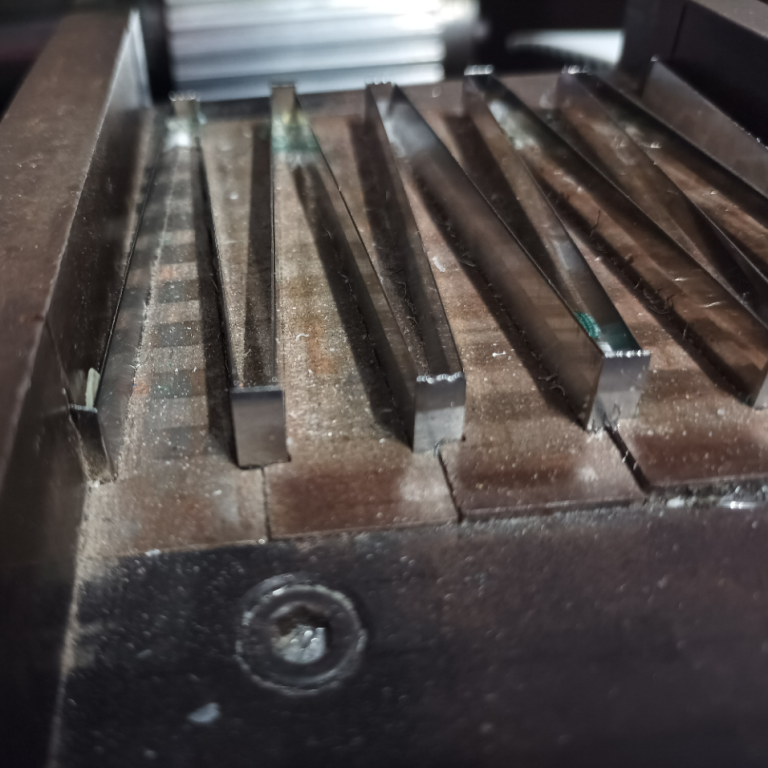

The cutting die unit consists of separately replaceable knives, that are pressed together in a steel block. The timing belts must be pulled by hand through the length measuring device and inserted precisely into profile plate. A plastic disc serves as the pressure plate. The punching process is carried out in two-hand operation.
Technical Details
The machine frame is a steel construction and will be supplied as one unit. The frame must be fixed on the floor. This section consists of the following components:
- hydraulic press
- wheel to rewinding of timing belt coils
- electronic system of length measurement
- profiled shafts for correct length measurement
- cutting die unit for punching
- profile plates as spacers (needed for precise punching)
